High-performance LED panel (150 lm/W) with CCT selector

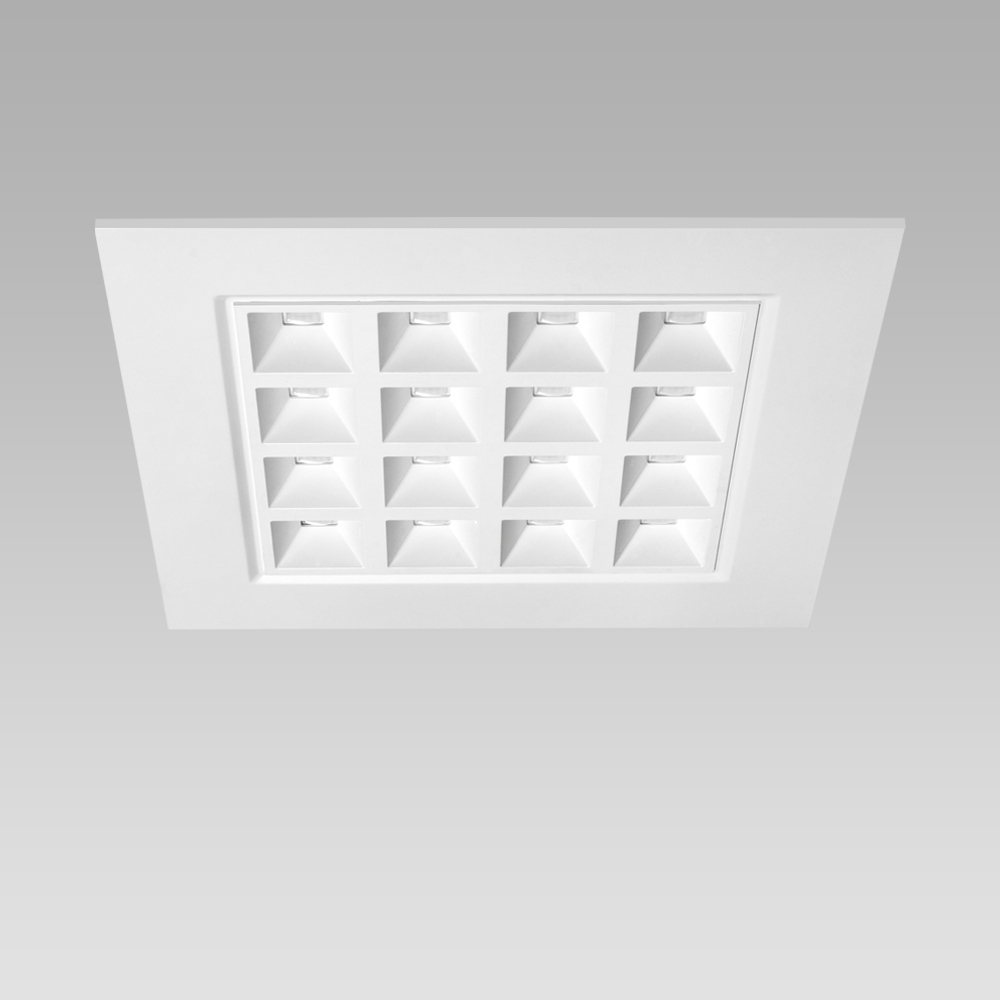

OPTICAL is the LED panel that combines aesthetics and high performance (up to 150 lm/W). The powder-coated stamped steel body houses high-efficiency, long-lasting LEDs. The use of technopolymer LED lenses ensures uniform light diffusion and minimal glare, making it especially suitable for environments with video terminals. Equipped with a CCT Selector 3000K, 4000K, and 5700K, it is also available in a DALI version.

Can be surface-mounted or recessed using dedicated accessories.

OPTICAL - LED panel
optical

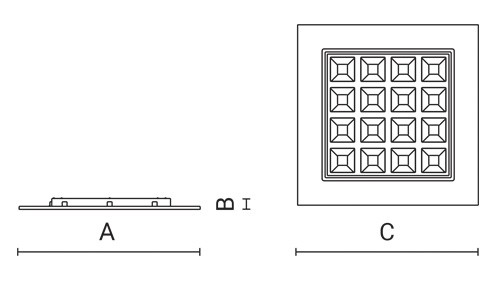

OPTICAL - Dimensions

Versions


LED Color


Color


Wiring


Code Optics Watt Lumen CCT CRI Wiring A B C UGR
0344120B-11 ultra wide flood 92° 32W 4800lm SELECTOR 80 DALI 596mm 34mm 596mm <19
0344120H-11 ultra wide flood 92° 32W 4800lm SELECTOR 80 DALI-E 596mm 34mm 596mm <19
0344120A-11 ultra wide flood 92° 32W 4800lm SELECTOR 80 ON/OFF 596mm 34mm 596mm <19
0344120G-11 ultra wide flood 92° 32W 4800lm SELECTOR 80 ON/OFF-E 596mm 34mm 596mm <19
